Easy-to-clean valve terminal sets the standard in food production

June 1, 2018 | By MRO Magazine

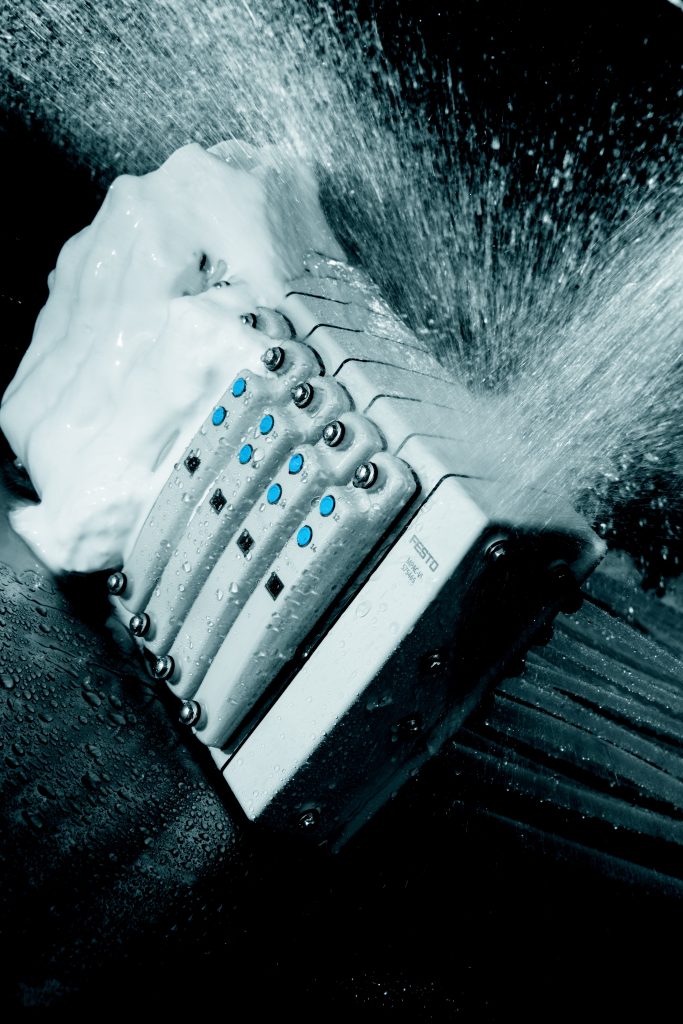

Festo’s easy-to-clean MPA-C valve terminal sets the standard in food production.

Festo’s easy-to-clean MPA-C valve terminal sets the standard in food production.

Mississauga, Ont. – Today’s stringent food safety rules require production systems that are easily and thoroughly cleanable to a very high standard, yet extremely reliable. That’s the key deliverable of Festo’s MPA-C valve terminal, the centrepiece of its Clean Design series of products for hygienically critical food production systems that get frequent, rigorous cleaning, often with corrosive agents. With Its IP69K and CRC4 class rating – the highest corrosion resistance class for Festo products – the MPA-C doesn’t have to be housed in a control cabinet, instead it can be located near the food handling area of the machine. That flexibility gives machine and process designers additional latitude to save space, eliminating the need for a larger control panel required to protect the pneumatic valve terminal. Faster cycle times can also be realized because the compact MPA-C can be mounted close to the pneumatic actuators minimizing long tubing lengths which improves air flow performance.

From an operational standpoint, Festo’s MPA-C handles high pressure cleaning, cleaning foams or harsh operating conditions extremely well. Its ideal housing surface design ensures cleaning agents can run off, significantly reducing time and effort during wash downs. Troubleshooting is fast thanks to LEDs on the valves, and valves are easily replaceable, minimizing downtime.

The MPA-C’s manifolds are designed with large air flow channels ensuring outstanding pneumatic performance. The valve terminal boasts single, modular sub-bases for up to 32 valves or solenoid coils, NSF-H1 lubrication and FDA certified materials. It enables individualized configuration possibilities, with electrical interfaces on the front or back, with multi-pin, fieldbus or Ethernet via CTEU/CTEL with or without manual override, allowing for 1-32 pressure zones. And it is perfectly complemented by other Clean Design products such as NPCK/PFAN tubing/fitting combinations, NEBV electrical connecting cables and DSBF or stainless steel CRDSNU cylinders. New for 2018, the MPA-C line also offers enhanced safety for exhaust air build-up when the non-return valve option is employed in exhaust ducts 3 and 5.

Watch the video demonstration.
